Finally, after a long period of sporadic commits, I released Gcolor3 version 2.3 out into the wild!
This release was two years in the making (two years and twelve days, to be precise). It features 67 commits, resulting in a redesigned saved colors page, a redesigned headerbar and loads of under-the-hood changes. In this post, I want to go into a little more detail on the development and what led up to Gcolor 2.3. If you are here just to install, head over to the install instructions on Gcolor3’s project page. If you wish to view the release notes only, those are at the bottom of this page.
I never did like the tree view that was used in previous versions of Gcolor3 for its saved colors. The code was fine, but the UI looked outdated and empty. There were no buttons in the tree view items, it wasn’t obvious that by clicking an item you could rename the color, et cetera.
When a reported bug about Ctrl-c not working in the tree view got picked up by Jan Tojnar, it opened up a rabbit hole of edge cases. I decided to scrap the whole thing and redesign this page to better fit in with GNOME’s HIG.

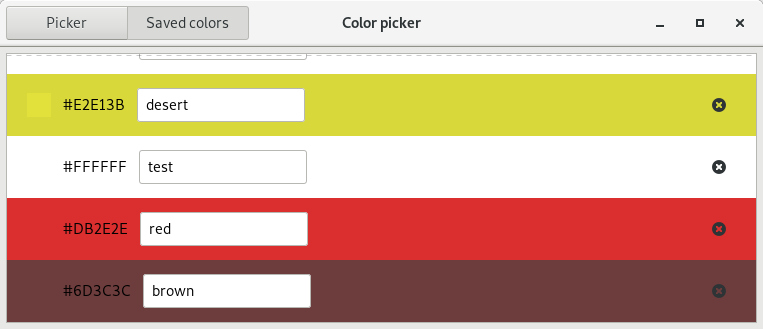

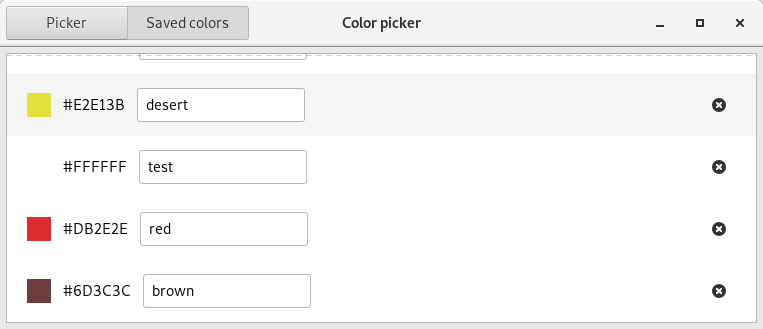

I made two mockups. Both used a GtkListBox, a widget that is used often in GNOME applications for content such as saved colors. The first one has each row colored with the color it belongs to. This worked nice with matching colors, but clashed hard when the colors didn’t go together well. The second design row simply had a small thumbnail to show the color. This left a lot of whitespace.

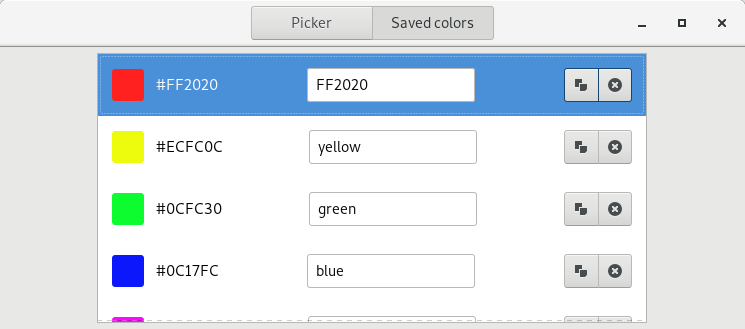

When I asked for feedback, Julian Richen mentioned that I could simply make the rows smaller and centered on the page, as is common in many GNOME applications. I opted to go with this solution (and thus design #2), as it not only fit better with the HIG but also is generally a better design. In the first mockup, for example, what color would a row be when it is selected? It can’t simply be the theme’s selected color, because then the user cannot see what color they selected. We can make it another color with some custom CSS, but this would still be the same problem. Going completely custom with our own effect would detract from one of the main reasons to redesign the page in the first place: to integrate better with the GNOME desktop. The idea was nice, but it didn’t work out in practice.
In the process of development, I refactored the color store (where Gcolor3 centrally keeps track of saved colors, even between different instances running simultaneously) to do away with its custom GObject signals and instead implement the GListModel interface. This allows us to bind the store to the list box widget, meaning the list box will update itself automagically. All that we need to do now is add, remove or rename colors in the store and the rest will be done for us. This significantly simplifies the codebase, where we had to do all this ourselves based on the signals emitted by the store.

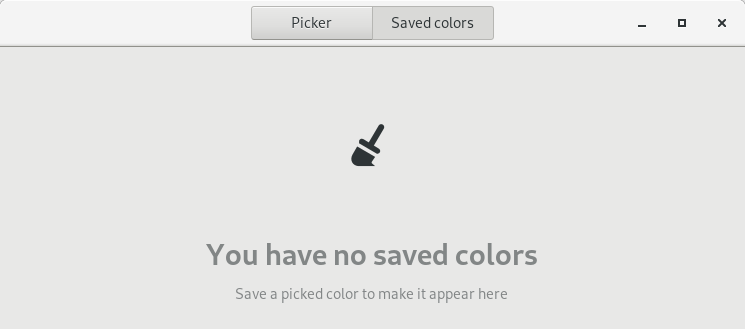

I also added a proper empty state for when there are no saved colors. Following more feedback on the design, I also made the thumbnails have a border radius (following the current GTK+ theme) and I added a button to copy the color as well (as opposed to having only a keyboard shortcut for this). And of course, the bug leading to this whole redesign was fixed in the process, as well 😉.
Thanks Jan and Julian for your cooperation on this issue!
Wayland support: past, present and future
Early 2016 I got a bug report that Gcolor3 does not work on Wayland: picking a color had no effect. This wasn’t surprising, as the GtkColorSelection widget I was using was a deprecated widget, after all. Nonetheless, this is an issue that needs to be fixed. A color picker isn’t much of a color picker when it cannot pick colors, is it?
In late 2017, users reported Gcolor3 crashing GNOME Shell when trying
to pick a color under Wayland. This was obviously a bigger problem
that couldn’t wait for a solution from the Wayland camp. With the
color selection widget being deprecated and indeed already removed
from what will be GTK+ 4, I imported
it (and its dependency,
Gcolor3. The aptly named
Gcolor3ColorSelection widget now checks
whether it is running on Wayland, and if so, makes the picker button
insensitive. This is the best I could do, until a general solution for
picking a color was available on Wayland.
Meanwhile, I opened a bug report on GNOME Shell to discuss the addition of a color picking interface. The outcome of this discussion was to add an interface to the XDG desktop portals. All of those bits are now in-place (XDG desktop portal interface, GNOME’s desktop portal implementation, GNOME Shell implementation, KDE’s desktop portal implementation and finally, KWin’s implementation). With version 2.3 out the door, I will now be focusing on implementing this interface and getting color picking working again on Wayland!
The GNOME desktop has been steadily advancing over the last two years. Two recent technologies that have modernized GNOME are the Meson build system and Flatpak. Following these trends, Gcolor3 is now building with Meson and packages as a Flatpak! The pull request to add it to Flathub, the Flatpak store, is open!
If you are more a fan of the traditional package manager approach, this release should excite you as well. Gcolor3 was already being packaged unofficially for Fedora, but it is now in the process of being included officially! If you are more of an Ubuntu guy (or gal), there is now an unofficial PPA for Ubuntu!
The biggest pain point right now is obviously Wayland (note: this is not a complaint towards Wayland itself – in fact, I believe Wayland is the future), so this is what I will work on first.
After this, I want to modernize the imported
Gcolor3HSV widgets. There are some chances to use modern APIs
there that will reduce the amount of boilerplate code. Furthermore, I
have already made some progress on porting them to use
I imported them, but there are some places left to apply this change
to. I hope this will result in less overall conversion between
Now that those widgets are under our control, I also think it’s time for a redesign of those widgets. I’m not sure yet where I want to go, but I have opened an issue to gather ideas. If you have any, please do let me know!
Finally, I want to make the saved colors sortable. Right now, the list is static and colors are sorted in order of insertion. Obviously, users might want to sort colors to group them together or some such.
As you can see, there is plenty left to improve Gcolor3. Besides these changes, GTK+ 4 is on the horizon as well. The future is exciting!
- Fix AppData for inclusion in Fedora, Flatpak (#60)
- Import deprecated GtkColorSelection and GtkHSV (#67)
- Fix crashing GNOME Shell on Wayland (#67)
- Package Gcolor3 as Flatpak (#72)
- Port Gcolor3 to the Meson build system (#83)
- This removes a dependency on intltool.
- Gcolor3ColorStore: mention that warnings are harmless on first run (#84)
- Fix CTRL-C and other keyboard shortcuts (#64)
- Redesigned saved color page (#92)
- Redesigned header bar (#92)
- Add a GtkShortcutswindow (#93)
- This bumps the required version of GTK+ 3 to 3.20.
- Add a manual page (#99)
- Publish Gcolor3 on Flathub (#87)
- There is now a PPA to install Gcolor3 on Ubuntu (#21)
- New translations: Norwegian Bokmål, Indonesian, Russian, Spanish
- Updated translations: Dutch, British English, German, Serbian
- Removed outdated translations (from build): French, Galician, Greek, Indonesian, Norwegian Bokmål, Spanish, Swedish, Ukranian
